Brewery plants with quality made in germany.

Pasteurizer: ServoFlash™


HighEnd system for pasteurisation
of liquid and viscous food

We give the designation "Servo" to all systems which work fully automatically. ServoFlash is our fully automatic flash pasteurisation plant. The plant is designed individually according to customer and product requirements. ServoFlash can be supplied with a plate heat exchanger or a shell and tube heat exchanger. The specified pasteurisation units are automatically kept within a very narrow tolerance range. The throughput rate is adapted to the fill level of the buffer tank or the target tank. If the fill level increases (due to a fault in the bottling plant for example), the output is reduced. The operating conditions are recorded. The system is equipped with a Siemens PLC and a coloured control panel. Operation from a central control room is possible.

ServoFlash systems can be divided up into three main categories depending on the product to be treated:

-> High pressure systems,
for carbonated beverages and beer

-> Low pressure systems,
for fruit juice and milk (including UHT)

-> Shell and tube heat exchanger systems,
for viscous products and fibrous products

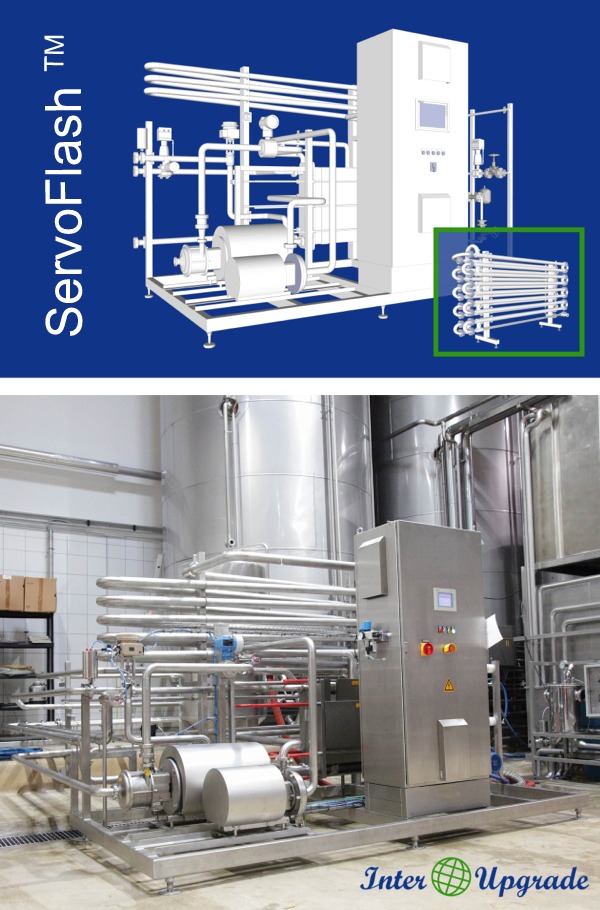

Pasteurizers ServoFlash.

ServoFlash™ II

We have completely updated the design of our ServoFlash pasteurisation plant. The plant is now 30% more compact and there is no downside to this reduction in size. The reason for this is the completely three dimensional design of each individual plant. Every problem which the installer previously encountered is detected and rectified at an early stage thanks to the three dimensional design. Our three dimensional designs are so accurate that the actual system is only millimetres different to the CAD model. During installation it is no longer necessary to prepare the base frame with something in reserve.

Sizes:
Type 32 max. 5 m³/h (60 hl/h)
Type 50 max. 11 m³/h (120 hl/h)
Type 65 max. 20 m³/h (230 hl/h)
Type 80 max. 35 m³/h (350 hl/h)

The compact dimensions and ease of maintenance are not the only outstanding characteristics. The optimisation encompasses many areas. Every ServoFlash system is now supplied with the capacity for remote maintenance as standard. Even the frequency converter for the main pump can be set via the remote maintenance unit's internal bus line.
