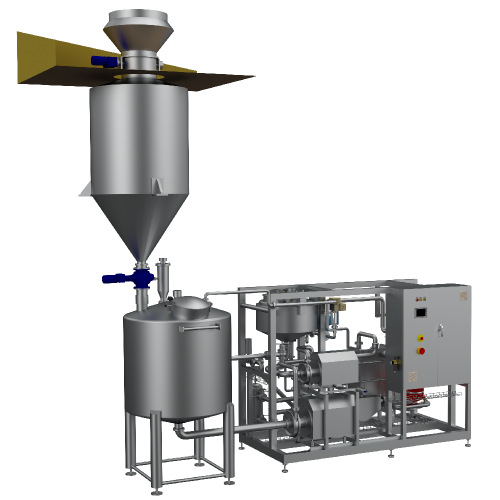

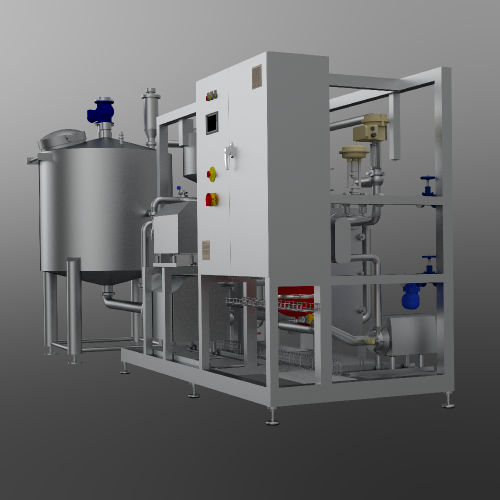

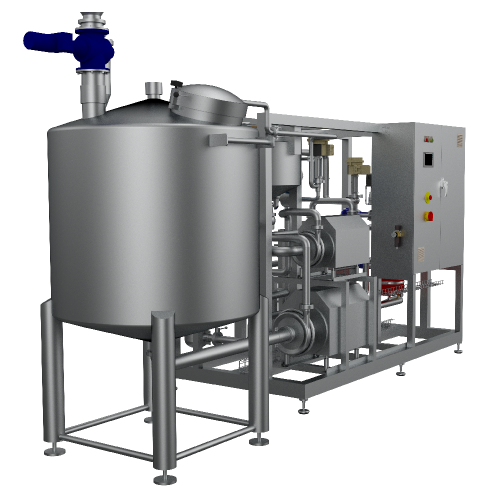

Sugar dissolving system: ContiBrix
| ContiBrix |
|---|
Unmatched low heat requirement and no recrystallisation!
This type of system is characterised by its unbeatably low heat demand. This is not the only reason why our ContiBrix is the best sugar dissolving system you can purchase. The only precondition is that you have a reasonably evenly sugar demand and that the concentration of the sugar syrup must not exceed 70 Brix. This type of plant is extremely suitable for beverage manufacturers. Cold crystal sugar is mixed with cold water, so that no vapours are generated that might lead to a closing of the dosing equipment for granulated sugar. Nonetheless, hot dissolving takes place within the system. Finally the hot sugar syrup is cooled to the desired syrup temperature by the water-sugar suspension in the countercurrent heat exchanger.
Sugar dissolved with this plant system will remain free from any recrystallisation for a very long time. The reason for this is the complete hot dissolving in continuous flow mode. No recrystallisation germs (e.g. undissolved sugar from tank walls, etc.) can pass through the system.
Max: 70 Brix
Capacities from 2,000 kg/h up to 20,000 kg/h
| Conventional sugar dissolving | ContiBrix sugar dissolving | |
|---|---|---|
|
Sugar dissolving location |
within the dissolving tank, the dissolving result is irregular, incompletely dissolved areas act as recrystallisation germs |
within the heat exchanger, complete dissolving, free from recrystallisation for a long time |
|
Heating media |
often possible directly with steam, caramelisation |
done by means of a hot water circuit, the temperature of the hot water is only approx. 10°C higher than the temperature of the sugar syrup at any point on the heat exchanger, caramelisation impossible |
|
Dissolving temperature |
a) up to 50°C |
70-80°C |
